JEET T51X Series 2.2mm 4-Way Articulating Videoscope, Remote Visual Inspection Borescope

JEET T51X Series 2.2mm 4-Way Articulating Videoscope, Remote Visual Inspection Borescope

JEET T51X Series 2.2mm 4-Way Articulating Videoscope, Remote Visual Inspection Borescope
JEET T51X Series 2.2mm 4-Way Articulating Videoscope, Remote Visual Inspection BorescopeJEET T51X Series 2.2mm 4-Way Articulating Videoscope, Remote Visual Inspection BorescopeJEET T51X Series 2.2mm 4-Way Articulating Videoscope, Remote Visual Inspection BorescopeJEET T51X Series 2.2mm 4-Way Articulating Videoscope, Remote Visual Inspection BorescopeJEET T51X Series 2.2mm 4-Way Articulating Videoscope, Remote Visual Inspection Borescope
CategoriesIndustrial Videoscopes
BrandJeet Videoscopes Manufacturer
ModelT51X
Probe Diameter(mm)Φ2.2/Φ2.4/Φ2.8/Φ3.8/Φ6
Camera Pixels300,000/1,000,000
Image Resolution640×480/1280×720
Video Resolution640×480/1280×720
FOV90°/120°
Light SourceFront ceramic light/ Rear-mounted optic fiber cold
IlluminanceMaximum: 50000+Lx 1~9 levels adjustable light
Tube Length1.5m/3.0m/5.0m/30m (customized for other length)
FOB portShenzhen
Terms of PaymentD/P, Western Union, T/T
Download DOC
Update Time2022/10/6
Detail Information

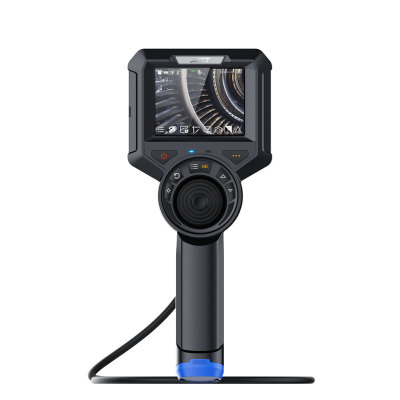

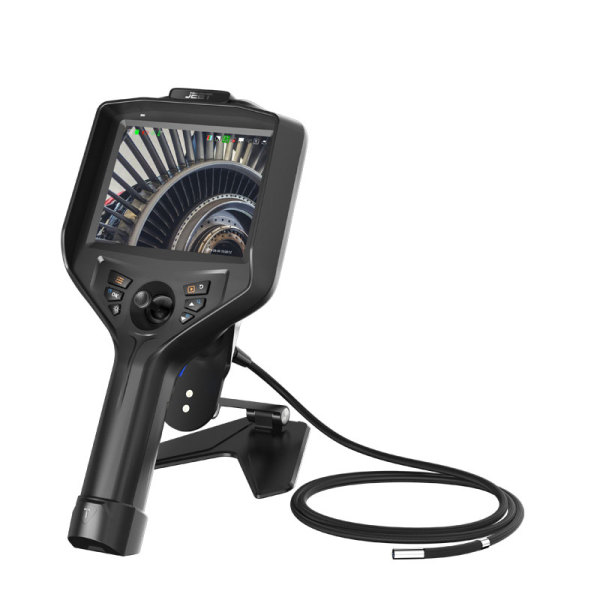

T51X SERIES HD VIDEOSCOPE
JEET T51X SERIES HD VIDEOSCOPE
JEET T51X Series 2.2mm 4-Way Articulating Videoscope, Joystick Videoscope, Pipeline Inspection Camera,Remote Visual Inspection Borescope
INTELLIGRNT SOFTWARE

Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can mee t all kinds of complicated inspection

Smart software for endoscopes
FLEXIBLE ARTICULATION CONTROL

360° joystick-control articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently  developed technology of long-distance transmission ensures bending angle ≥100° ,

Greater than 100° bending angle
360° steering
STRONG HARDWARE

T51X series videoscope is module designed. Configured with 5.1 inches HD display, it can be interchangeable with 3.5 inches small display, suitable for different inspection requirements. The monitor and probe can be separated by one  button.  It  is  compatible  with  different  diameter  tubes  like:  2.0mm/2.2mm/2.8mm/3.8mm/6mm,  as  well  as 3.8mm&6mm sideview tubes and 6mm dual lens tube.



Compatible with various piping systems
JEET T51X SERIES HD VIDEOSCOPE
ISO

QUALITY ASSURANCE

All products are complied with RoHS, CE and ISO standard and passed testing for temperature waterproof  drop  vibration  and  pressure.  We  devote  ourselves  to  providing  high-quality professional inspection instrument to every customer.

Tube

System

Probe Diameter(mm)

Φ2.2/Φ2.4/Φ2.8

Φ3.8/Φ6

Camera Pixels
300,000
1,000,000

Image Resolution

640×480

1280×720

Video Resolution

640×480

1280×720

DOF

3mm-50mm/5mm-80mm

10-100mm/5 -80mm/5-150mm/50mm-∞

FOV

90°/120°

Viewing Direction

0° front view/ 90° sideview/ front view& sideview dual lens

Light Source

Front ceramic light/ Rear-mounted optic fiber cold

Illuminance

Maximum: 50000+Lx 1~9 levels adjustable light

Protecting Device of Durability

42mm buffer protection device between tube and handle

Articulation

2-way / 360° joystick-control articulation

Bending Angle

Maximun:190°

Probe Positioning

Damping positioning & articulation lock device

Wi-Fi Transmission

Image transmission to Mobile phone, computer by Wi-Fi(optional)

Monitor

System

Display

5. 1" color IPS display, all sight viewing angle, sunshade design

Display Resolution

1280*960

Zoom In/Out

8X

Language

English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean

White Balance Suppression

5 levels adjustable

White Balance

Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.

Image Effect

Negative film/ black & white/standard

Temperature Indication

High temperature alarm optional

IP Level

Probe/tube: IP67

Software Function

Playback, image parameters adjust and rotate

Structure

Hand-held integrated design

Image/Video Format

JPEG/MOV

Comparative Measurement

Use measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.

Data Port

HDMI video output, Micro USB port with water &dust proof device

Working Time

≥8h

Battery Capacity

3.7V  3200mAh×2

Power Charge

DC5V, 1A

Weight

≤0.8Kg

Compatibility

Interchangeable monitor and tube with different diameters

Accessories

Standard Configuration

Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 16G. TF

card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
