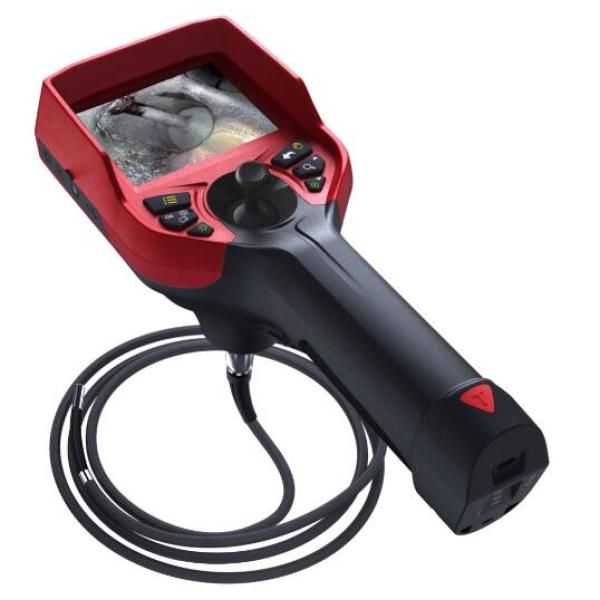

JEET TQ Series Automotive 4 Way Articulating Videoscope

JEET TQ Series Automotive 4 Way Articulating Videoscope

JEET TQ Series  Automotive 4 Way Articulating Videoscope
JEET TQ Series  Automotive 4 Way Articulating VideoscopeJEET TQ Series  Automotive 4 Way Articulating VideoscopeJEET TQ Series  Automotive 4 Way Articulating VideoscopeJEET TQ Series  Automotive 4 Way Articulating Videoscope
CategoriesAutomotive videoscopes
AlbumView larger image
BrandJEET
ModelTQ-6010
FOB portShenzhen
Terms of PaymentL/C, Western Union, T/T
Update Time2020-08-04
Detail Information

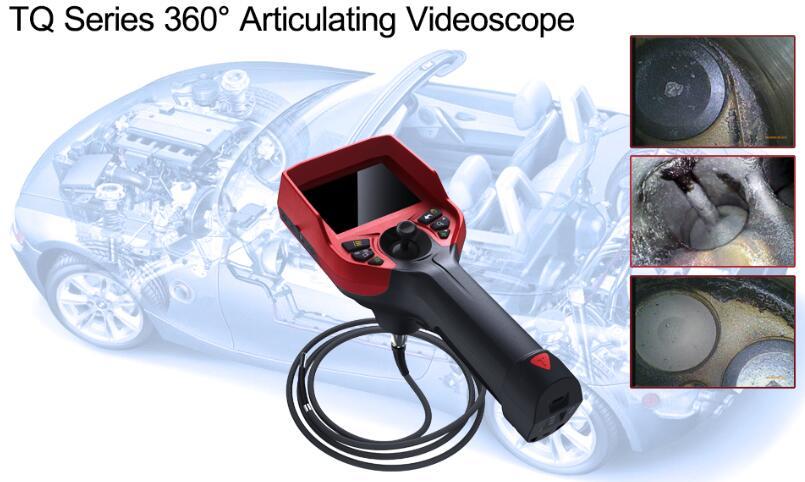

JEET TQ series 4 way articulating videoscopes are mainly used for the inspection and diagnosis of automobile engines, which can greatly reduce the repair time and cost, and also avoid the damage caused by multiple disassembly and assembly of the parts. In the cleaning and maintenance of car engines, TQ series joystick videoscope can clearly check the conditions of the engine's carbon deposition, nozzle and other parts.

inspection picture.png



comparison picuture before and after maintenance

cleaning quality.jpg


Articulation

360 ° all-way articulation, damping type positioning design, precise articulation locking technology, make the detection

more accurate and efficient.




Packaging & Accessories

Multi-functional magnetic stand; Practical probe accessories to meet a variety of inspection requirements.



Parameters



Tube System

Probe Diameter(mm)

Φ6.0mm

Camera Pixels

1,000,000

DOF

10-100mm

FOV

120°



Light Source

LED (optional: optic fiber)

Illuminance

It can be up to 100,000 Lx

Tube Length

1.0m/1.5m

Protecting Device of Durability

42mm buffer protection device between tube and handle

Articulation

360° joystick control

Bending Angle

Maximun:190°

Probe Positioning

Damping positioning (optional: articulation lock device)

Monitor System

Display

3.5 inches TFT LCD

Image Resolution

1280×720

Language

English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Russian / Ukrainian / Korean /Polish / Latvian

Outer Case Material

Anti-fall engineering alloy material

IP Level

Probe/tube: IP67

Temperature Indication

High temperature alarm(optional

Structure

Hand-held integrated design

Image/Video Format

JPEG/MOV

Data Port

HDMI video output, Micro USB port

Working Time

≥8h

Zoom In/Out

4X

Battery Capacity

3.7V3200mAh×2

Power Charge

DC5Vmaximum current: 1A

Weight

0.55Kg-0.8Kg

Compatibility

Interchangeable monitor and tube with different diameters

Accessories

Storage

Standard TF card: 16G, Maximum: 32G

Power Supply

Detachable lithium batteries

Standard Configuration

Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual
