JEET T35H Series Mega Pixels 3.9mm Video Endoscope, 4-Way Articulating Videoscope, Inspection Camera

JEET T35H Series Mega Pixels 3.9mm Video Endoscope, 4-Way Articulating Videoscope, Inspection Camera

JEET T35H Series Mega Pixels 3.9mm Video Endoscope, 4-Way Articulating Videoscope, Inspection Camera
JEET T35H Series Mega Pixels 3.9mm Video Endoscope, 4-Way Articulating Videoscope, Inspection CameraJEET T35H Series Mega Pixels 3.9mm Video Endoscope, 4-Way Articulating Videoscope, Inspection CameraJEET T35H Series Mega Pixels 3.9mm Video Endoscope, 4-Way Articulating Videoscope, Inspection CameraJEET T35H Series Mega Pixels 3.9mm Video Endoscope, 4-Way Articulating Videoscope, Inspection CameraJEET T35H Series Mega Pixels 3.9mm Video Endoscope, 4-Way Articulating Videoscope, Inspection Camera
CategoriesIndustrial Videoscopes
AlbumView larger image
BrandJEET
ModelT35H-3910
Download DOC
Update Time2020-12-01
Detail Information
Main Features:

1. High definition: Photo/Video 720P; 1,000,000 pixels; HD display, resolution:1280*720.
2. Interchangeable monitor and tube:it is compatible with tubes from 3.9mm to 6mm diameter.
3. 360 ° joystick-control articulation, maximum bending angle≥190. Independently developed technology of long-distance transmission ensures bending angle ≥100°, even the tube reaches 10 meters.
4.High temperature alarm function: orange alarm when the temperature is above 65 ℃; red alarm and auto shutdown when the temperature is more than 80 ℃.
5. Measuring function: defect size measurement and comparison.
6. layers of tungsten-braided tube; Wear resistance: 20 times better than ordinary probe.
7. Original dual battery design, 8 hours working time, real-time battery indication.

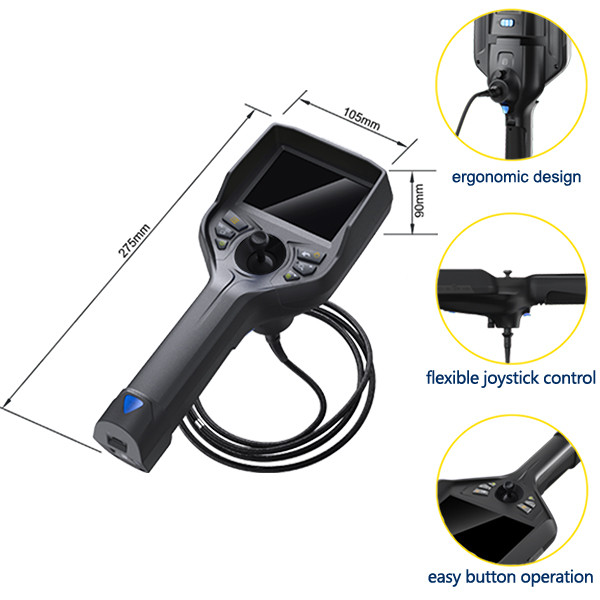

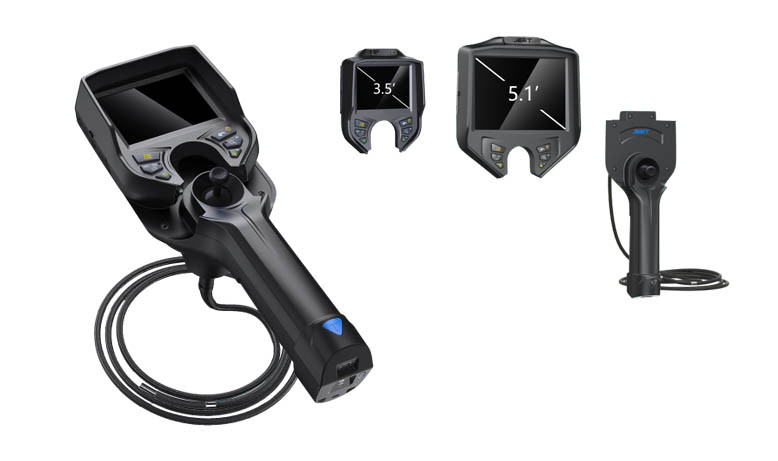

Interchangeable display:

Independent module design for display screen and Tube, 3.5-inch and 5.1-inch display screens can be selected at will, and the operation is more intelligent and convenient.

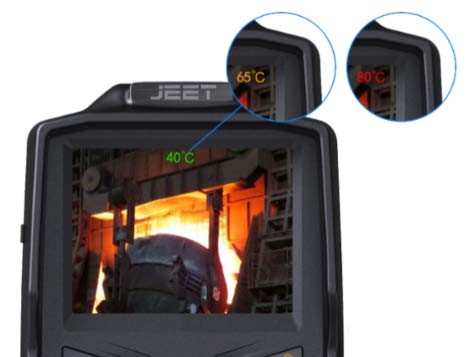

Alarm
High Temperature alarm function: 1. Yellow alarm when the temperature of testing environment is above 70℃; 2. Orange alarm when the temperature is above 80℃; 3. Red alarm and shutdown when the temperature is more than 90℃.
Output
Camera and video 1080P, 450 thousland, 1 million, 2 million pixels are optional; support HD video recording, high definition display, picture resolution up to 1920*1080.

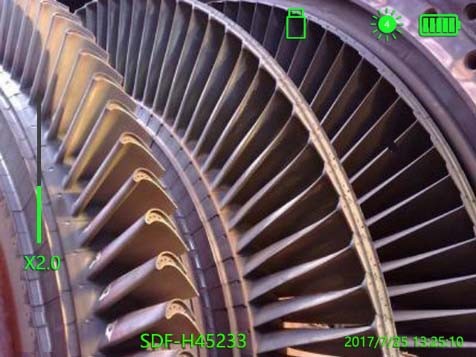

Real-Time Zooming
In preview mode, it supports real-time zooming, and the defect inspection is more intuitive.

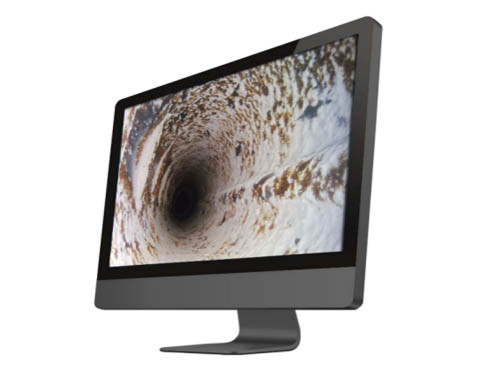

High Definition Display
Camera and video 1080P, 450 thousland, 1 million, 2 million pixels are optional; support HD video recording, high definition display, picture resolution up to 1920*1080.

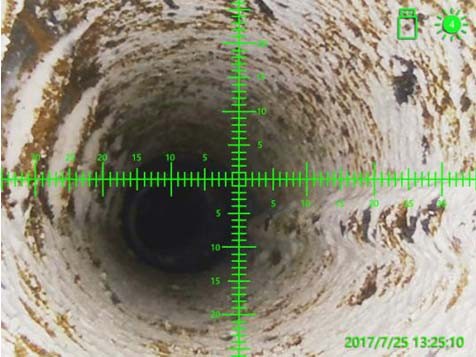

Scale
Defect size measurement and comparison coordinate display, available for review, more accurate auxiliary judgement for defect detection.
Multifunctional insert tube

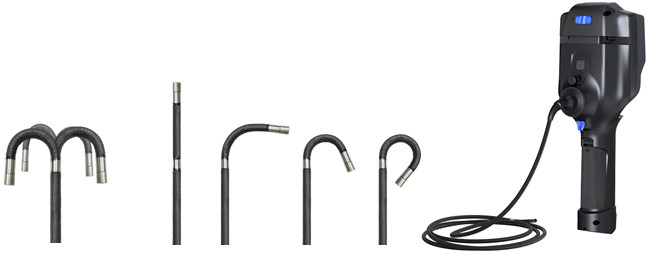

Articulation
360° all-way articulation, damping type positioning design, precise articulation locking technology, make the detection more accurate and efficient.

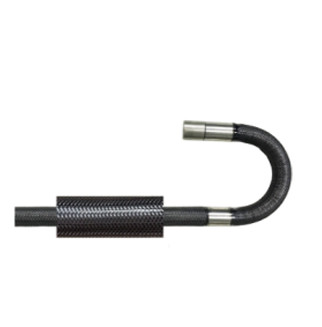

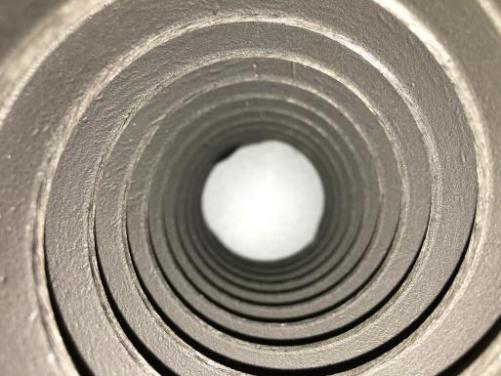

Wear Resistant Tube
5 layers of tungsten - braided tube; wear resistance; 20 times better than ordinary probe.

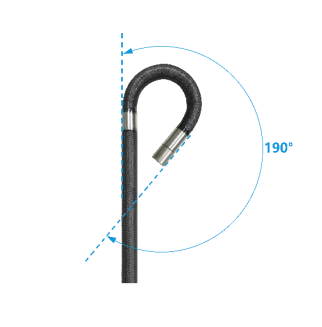

Bending
The maximum bending angle is up to 190℃.

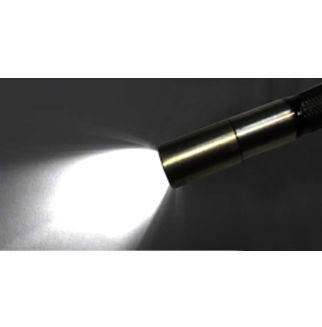

Illuminance
With super bright ceramic LED, the illuminance can reach to 1000000 Lx.

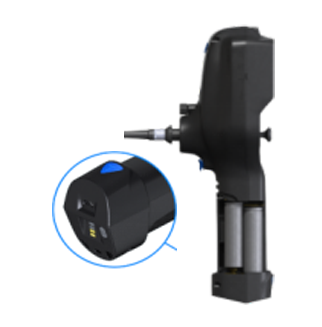

Working Time
Original dual battery design, 8 hours working time, real-time battery indication.

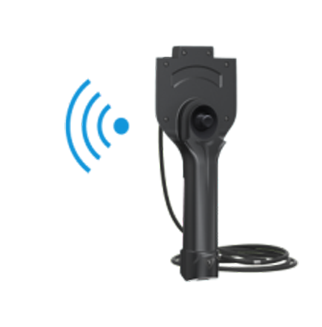

Wifi
The image can be outputted to HD display by HDMI or Wi-Fi.

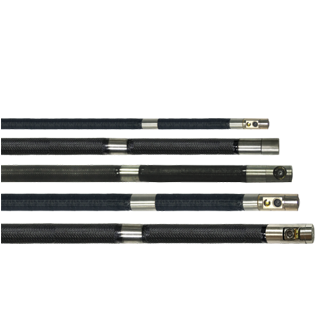

Interchangeable Tube
It is compatible with tubes from 3.8mm to 6mm diameter.

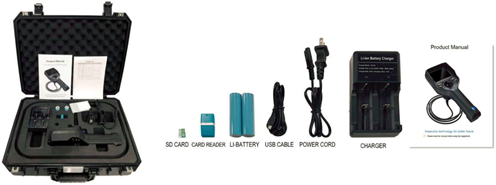

Packaging & Accessories
Multi-functional magnetic stand; Practical probe accessories to meet a variety of inspection requirements.
Quality Assurance
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Application
T-Series mega pixels industrial endoscope are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing, explosion-proof detection, etc.
JEET T35H Series Video Endoscope
Tube System
Probe Diameter(mm)
Φ3.9
Camera Pixels
1,000,000
DOF
5-80mm//10-100mm/50mm-∞
FOV
120°
Light Source
LED (optional: optic fiber)
Illuminance
It can be up to 20,000 Lx
It can be up to 100,000 Lx
Tube Length
1.0m/2.0m/3.0m/4.0m/5.0m
(customized for other length)
1.0m/2.0m/3.0m/4.0m/5.0m/6.0m/7.0m/8.0m
(customized for other length)
Protecting Device of Durability
42mm buffer protection device between tube and handle
Articulation
360° joystick control
Bending Angle
Maximun:190°(8m tube:100°)
Probe Positioning
Damping positioning (optional: articulation lock device)
Monitor System
Display
3.5 inches TFT LCD
Image Resolution
1280×720
Language
English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Russian / Ukrainian / Korean /Polish / Latvian
Outer Case Material
Anti-fall engineering alloy material
IP Level
Probe/tube: IP67
Temperature Indication
High temperature alarm(optional)
Structure
Hand-held integrated design
Image/Video Format
JPEG/MOV
Data Port
HDMI video output, Micro USB port
Working Time
≥8h
Zoom In/Out
4X
Battery Capacity
3.7V,3200mAh×2
Power Charge
DC5V,maximum current: 1A
Weight
0.55Kg-0.8Kg
Compatibility
Interchangeable monitor and tube with different diameters
Accessories
Storage
Standard TF card: 16G, Maximum: 32G
Power Supply
Detachable lithium batteries
Standard Configuration
Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual
