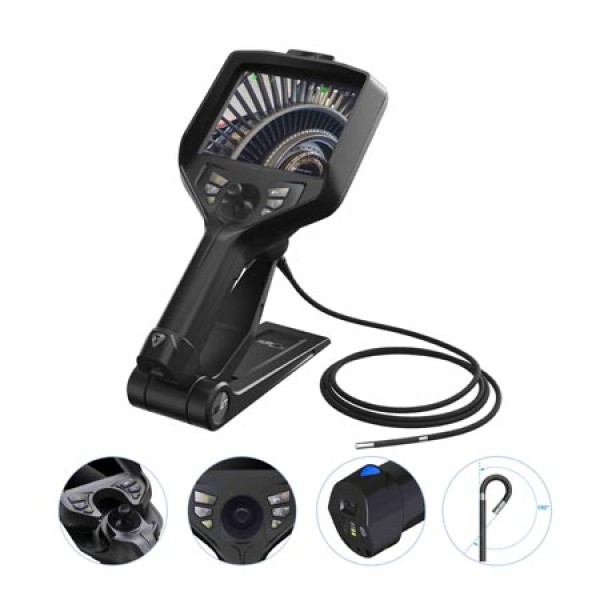

T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera

T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera

T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera
T51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection CameraT51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection CameraT51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection CameraT51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection CameraT51X Series 2.8mm Sideview Videoscope/4 Way Articulating Borescope/ Pipeline Inspection Camera
CategoriesIndustrial Videoscopes
BrandJEET
ModelT51X-2810S
Probe Diameter(mm)Φ2.8
Camera Pixels300,000
Image Resolution640×480
Video Resolution640×480
FOV120°
Light SourceFront ceramic light/ Rear-mounted optic fiber cold
IlluminanceMaximum: 50000+Lx 1~9 levels adjustable light
Tube Length1.5m/3.0m/5.0m/30m (customized for other length)
FOB portShenzhen
Terms of PaymentD/P, Western Union, T/T
Download DOC
Update Time2022/5/25
Detail Information
JEET T51X SERIES HD VIDEOSCOPE
INTELLIGRNT SOFTWARE

Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can mee t all kinds of complicated inspection

FLEXIBLE ARTICULATION CONTROL

360 ° joystick-control articulation, damping type positioning design, precise probe   locking technology, make the detection more accurate and efficient. Independently  developed technology of long-distance transmission ensures bending angle ≥100° ,

STRONG HARDWARE

T51X series videoscope is module designed. Configured with 5.1 inches HD display, it can be interchangeable with 3.5 inches small display, suitable for different inspection requirements. The monitor and probe can be separated by one  button.  It  is  compatible  with  different  diameter  tubes  like:  2.0mm/2.2mm/2.8mm/3.8mm/6mm,  as  well  as 3.8mm&6mm sideview tubes and 6mm dual lens tube.



QUALITY ASSURANCE

All products are complied with RoHS, CE and ISO standard and passed testing for temperature waterproof  drop  vibration  and  pressure.  We  devote  ourselves  to  providing  high-quality professional inspection instrument to every customer.

Tube System

Probe   Diameter(mm)

Φ2.8


Camera Pixels

300,000


Image   Resolution

640×480


Video Resolution

640×480


DOF

3mm-50mm/5mm-80mm


FOV

120°

Viewing Direction

90° sideview

Light Source

Front ceramic light/ Rear-mounted optic fiber   cold

Illuminance

Maximum: 100000+Lx 1~9 levels adjustable light

Tube Length

1.5m/3.0m/5.0m/30m (customized for other   length)

Protecting   Device of Durability

42mm   buffer protection device between tube and handle

Articulation

2-way / 360° joystick-control articulation

Bending   Angle

Maximun:190°

Probe Positioning

Damping positioning & articulation lock   device

Wi-Fi   Transmission

Image   transmission to Mobile phone, computer by Wi-Fi(optional)

Monitor

System

Display

5.1" color IPS display, all sight viewing   angle, sunshade design

Display   Resolution

1280*960

Zoom In/Out

8X

Language

English / French / German / Spanish / Japanese /   Traditional Chinese / Simplified Chinese / Russian / Korean

White Balance Suppression

5 levels adjustable

White   Balance

Auto white   balance, automatically adjusts and eliminates speckles to achieve optimal   images.

Image Effect

Negative film/ black & white/standard

Temperature   Indication

High   temperature alarm (optional)

IP Level

Probe/tube: IP67

Software   Function

Playback,   image parameters adjust and rotate

Structure

Hand-held integrated design

Image/Video   Format

JPEG/MOV

Comparative   Measurement

Use   measuring probe and analog scale to compare and analyze the internal defect   and size of the inspected object.

Data Port

HDMI video output, Micro USB port with water   &dust proof device

Working   Time

≥8h

Battery Capacity

3.7V3200mAh×2

 Power   Charge

DC5V, 1A

Weight

≤0.8Kg

Compatibility

Interchangeable monitor and tube with different   diameters

Accessories

Standard   Configuration

Instrument   case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card:   1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
