JEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope, Joystick Control 360° Articulation

JEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope, Joystick Control 360° Articulation

JEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope, Joystick  Control 360° Articulation
JEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope, Joystick  Control 360° ArticulationJEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope, Joystick  Control 360° ArticulationJEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope, Joystick  Control 360° ArticulationJEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope, Joystick  Control 360° ArticulationJEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope, Joystick  Control 360° Articulation
CategoriesAutomotive Videoscopes
BrandJeet Videoscopes Manufacturer
ModelS610
Probe Diameter(mm)Φ6.0
Tube Length1m/1.5m
Tube Materialtungsten alloy
Camera Pixels1 mega pixels
Image Resolution1280*720
DOF10~100mm
FOV120°
Light SourceLED ceramic light
Download DOCpdf icon
Update TimeNovember 29,2022
Detail Information

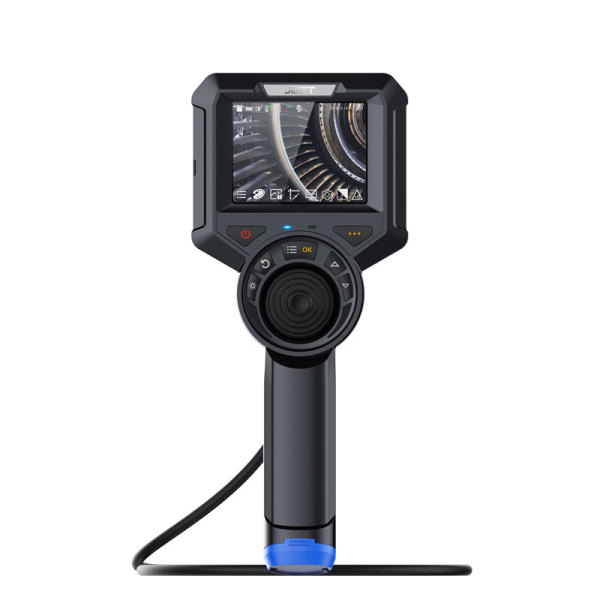

S-Series Industrial Videoscope
JEET S Series Tool Videoscope, Mega Pixles Industrial Endoscope,  Joystick  Control 360° Articulation
1280×720 Mega HD Image
1280×720 Mega HD Image

Car front face design button
Car front face design button

3.5 inches IPS HD full-view display
3.5 inches IPS HD full-view display

Aircraft engine streamlined design joystick
Aircraft engine streamlined design joystick

Features
joystick-control 360°accurate articulation
joystick-control 360°accurate articulation

220°large bending angle, ensure to inspect every corner of detected object
220°large bending angle, ensure to inspect every corner of detected object

It can insert and inspect as long as there are holes or gaps
It can insert and inspect as long as there are holes or gaps

Super bright ceramic light with 0-6 levels control
Super bright ceramic light with 0-6 levels control

Sapphire glass lens, high precision probe
Sapphire glass lens, high precision probe

One-click photo/video taking, real-time wireless image transmitting
One-click photo/video taking, real-time wireless image transmitting

Iconic menu, easy operation
Iconic menu, easy operation

Light and portable only 0.5KG
Light and portable only 0.5KG

The whole product is dust-proof and water-proof
The whole product is dust-proof and water-proof

Excellent quality, anti-fall and wear-resistant
Excellent quality, anti-fall and wear-resistant

Super long working time
Super long working time

Optional accessories
Optional accessories

Model
S610
S615
Tube
System
Probe Diameter(mm)
Φ6.0
Tube Length
1m
1.5m
Tube Material
tungsten alloy
Camera Pixels
1 mega pixels
Image Resolution
1280*720
DOF
10~100mm
FOV
120°
Light Source
LED ceramic light
Illuminance
25000Lx
Protecting Device of Durability
80mm buffer protection device on the connection between tube and handle
Articulation
360° joystick-control articulation
Bending Angle
maximun: 220°
Monitor
System
Structure
hand-held integrated design
Display
3.5 inches IPS full-view display
Zoom In/Out
5X
Image Effect
image freezing, cold/warm color
Image Adjustment
image sharpness/ contrast/gamma value
Image/Video Format
JPEG/MP4
File Storage
standard TF card: 16G, Maximum: 64G
Data Port
HDMI video output, Micro USB port
Wireless Image Transmission
WIFI(optional)
Battery
detachable & rechargeable  lithium battery
Battery Capacity
3.7V,3200mAh
Battery Working Time
≥3H
Battery Charge
DC 5V/1A
Outer Case Material
anti-fall engineering alloy material
Water/Dust Proof
probe/tube: IP67; monitor: IP65
Weight
≈0.5KG
Accessories
Standard Configuration
instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual
optional
extendable pole: 0.35-1.8m/mini HDMI cable/ foldable tripod
