JEET TU Series UV Videoscope/ Industrial Endoscope/ Joystick Videoscope
|Viewing Direction||front view|
|Light Source||Rear-mounted optic fiber cold UV+White source|
JEET TU Series UV Videoscope
JEET UV videoscope is only 0.56Kg and is very lightweight. In addition, the diameter of the tube is only 6mm. Two light sources are highly integrated in this 6mm insert tube, which are a 400-700nm white light source and a 365nm ultraviolet light source.

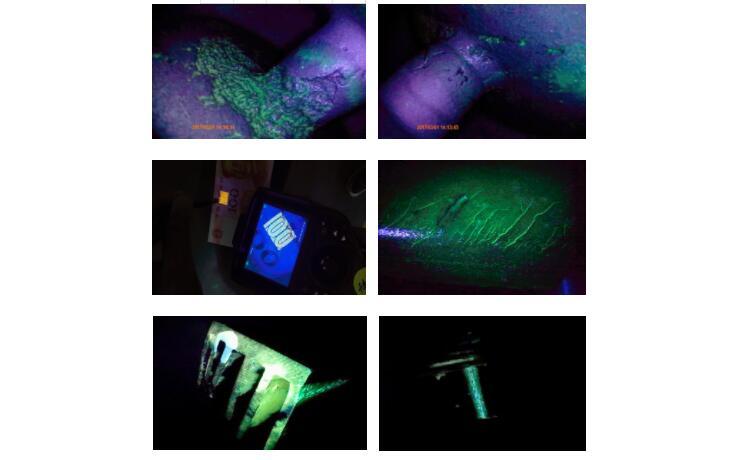

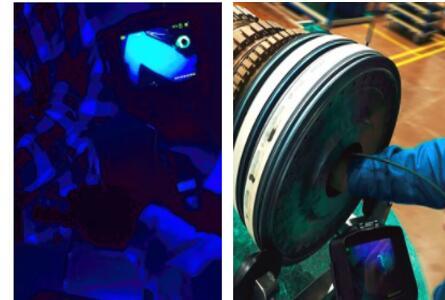

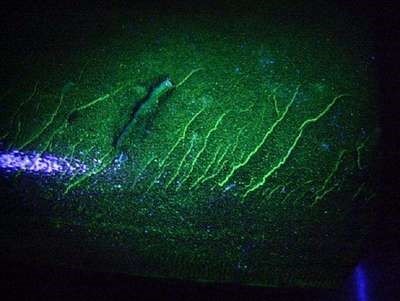

Integrated design of UV& white dual light sources. In a completely black environment, white light can be used to find the approximate defect, then spray the phosphor, after the phosphor penetrates, switch to UV light source for flaw detection which makes the detection more efficient and accurate!
Rear-mounted optic fiber cold UV+White source
1.5m/3.0m/5.0m(customized for other length)
Protecting Device of Durability
42mm buffer protection device between tube and handle
360° joystick-control articulation
Damping positioning & articulation lock device
Image transmission to Mobile phone, computer by Wi-Fi(optional)
5.1" color IPS display, all sight viewing angle, sunshade design
English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean
White Balance Suppression
5 levels adjustable
Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.
High temperature alarm （optional）
Playback, image parameters adjust and rotate
Hand-held integrated design
Use measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
HDMI video output, Micro USB port with water &dust proof device
Interchangeable monitor and tube with different diameters
Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
