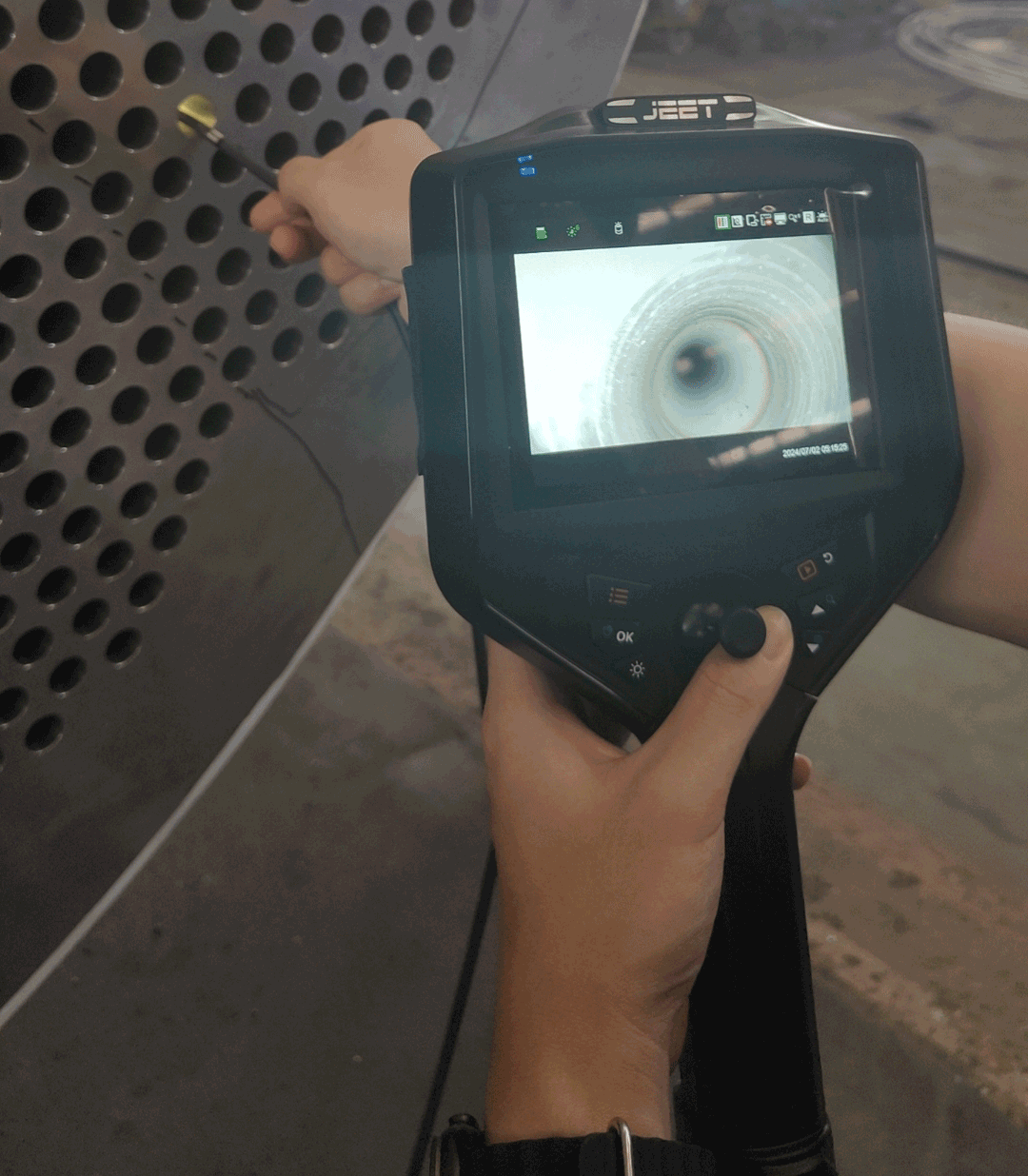

NDT technician using industrial pipe inspection camera to examine heat exchanger tube bundle interior at petrochemical refinery during turnaround

1. Why Pipe Inspection Cameras Are Non-Negotiable in Petrochemical Ops

Petrochemical facilities operate under a mechanical integrity framework mandated by OSHA's Process Safety Management (PSM) standard (29 CFR 1910.119) and EPA's Risk Management Program (RMP). Both regulations require documented inspection of pressure-containing equipment — and visual inspection via borescope is the primary NDT method for internal surfaces that cannot be examined externally. A pipe inspection camera is not a convenience tool; it is a compliance instrument.

$1.6B

average annual cost of corrosion in U.S. petroleum refining (NACE International estimate)

40–60%

of unplanned shutdowns in refining are caused by equipment failure traceable to corrosion or erosion

10:1

ROI ratio — every $1 spent on planned borescope inspection saves ~$10 in unplanned failure costs

The economics are brutal in one direction: a single failed tube bundle in a crude unit pre-heat exchanger can force a unit shutdown costing $50,000–$200,000 per day in lost production. The same failure, caught early during a scheduled borescope inspection, is a planned work order — not an emergency.

Regulatory note: OSHA 1910.119(j) requires that each inspection of pressure vessels and piping be documented with date, inspector name, equipment description, inspection method, and results. API 510 Section 6.5 further requires that internal visual inspections include "the condition of internal components, welds, and corrosion." A borescope image with metadata is the most defensible form of this record.

2. 6 Critical Inspection Points in a Petrochemical Facility

Not every component in a refinery is a borescope target — but the ones that are tend to share three characteristics: they contain corrosive or erosive process fluids, they cannot be fully inspected externally, and their failure has safety or production consequences. Here are the six inspection points where a pipe borescope delivers the highest value.

POINT 1

Heat Exchanger Tube Bundles

Primary Defects

  • Tube wall thinning (erosion-corrosion)
  • Pitting (chloride-induced in austenitic SS)
  • Tube-to-tubesheet joint leaks
  • Fouling and scale buildup
  • Sulfidation (high-temp H₂S service)

Access

Tube IDs range from 12–25 mm typically. Channel head removal required for shell-and-tube bundles. Push-camera insertion from tube sheet face; long working length needed (3–10 m) for full tube traversal.

Probe Requirement

6–10 mm probe OD; 3–10 m working length; forward + side-view tip options; waterproof to IP67 minimum; high-brightness LED for fouled/dark tube interiors.

POINT 2

Pressure Vessel Internals

Primary Defects

  • Weld corrosion and cracking
  • Internal lining degradation
  • Baffle and tray damage
  • Sediment accumulation
  • HIC and SOHIC damage

Access

Manway entry (typically 18–24 inch nozzles). Articulated probe needed to navigate around internal baffles and demister pads. Confined space entry permit required.

Probe Requirement

4-way articulation essential; 6–8 mm probe OD; 2–5 m working length; 1080p minimum; stereo measurement for crack sizing and wall loss estimation.

POINT 3

Aboveground Storage Tank Floors & Shells

Primary Defects

  • Underfloor corrosion (soil-side)
  • Shell-to-floor weld cracking
  • Internal pitting (product-side)
  • Coating breakdown
  • Roof support leg damage

Access

Via roof manholes and shell nozzles after degassing and cleaning. MFL (magnetic flux leakage) is primary floor method; borescope supplements for weld detail and coating assessment where MFL flags anomalies.

Probe Requirement

Long push camera (10–30 m); wide-angle lens; side-view attachment for shell wall scanning; pan-tilt-zoom tip for floor weld examination.

POINT 4

Process Piping & Elbows

Primary Defects

  • Flow-accelerated corrosion (FAC) at elbows
  • Erosion at reducers and tees
  • Weld root corrosion
  • Deadleg stagnation corrosion
  • Caustic embrittlement

Access

Removal of spool pieces or via existing inspection ports. Long-radius elbows are the highest-priority CMLs (condition monitoring locations) under API 574. May require isolation and draining.

Probe Requirement

Flexible push camera; 8–15 mm probe OD for 2-inch+ piping; 5–30 m working length; interchangeable lens tips (forward, side, 90°) for elbow and tee coverage.

POINT 5

Furnace & Boiler Tubes

Primary Defects

  • Coking and carbon deposits
  • Creep damage (bulging)
  • Oxide scaling (ID and OD)
  • Flame impingement damage
  • Tube wall thinning

Access

Via burner ports or dedicated inspection peepdoors after furnace cooldown. High residual temperatures; may require heat-resistant probe sheath. Vertical insertion for radiant section tubes.

Probe Requirement

High-temp probe tip rated ≥150°C contact; 8–12 mm OD; 3–8 m working length; wide FOV for tube surface survey; high-lumen LED or external light source for furnace-scale visibility.

POINT 6

Valve & Pump Internals

Primary Defects

  • Seat and disc erosion
  • Cage and trim deposits
  • Galling and scoring
  • Spring fatigue (check valves)
  • Impeller cavitation damage

Access

Through valve bonnet bore or pump suction/discharge nozzles. Often inspected without full disassembly — borescope avoids costly dismantling for initial triage of in-service equipment.

Probe Requirement

Small-diameter articulated probe (4–6 mm); 4-way articulation for valve cage navigation; stereo measurement for seat-to-disc gap assessment; 1080p minimum.

3. Equipment Specs for Harsh Hydrocarbon Environments

A petrochemical facility is not a clean room. Residual hydrocarbons, H₂S gas, high humidity, elevated temperatures, and confined-space entry constraints all shape what your pipe inspection camera must survive. The table below shows the minimum and recommended specifications for each inspection point.

Inspection Point Probe OD Working Length Min Resolution Articulation Environmental
Heat Exchanger Tubes 6–10 mm 3–10 m 1080p Forward + side-view tips IP67, hydrocarbon-resistant sheath
Pressure Vessel Internals 6–8 mm 2–5 m 1080p 4-way, ≥180° IP67, stereo measurement
Storage Tank Floors/Shells 10–15 mm (push cam) 10–30 m 1080p PTZ or interchangeable lens IP68, vapor-tight housing
Process Piping & Elbows 8–15 mm 5–30 m 1080p Flexible push, multi-tip IP67, chemical-resistant jacket
Furnace/Boiler Tubes 8–12 mm 3–8 m 1080p Forward + 90° side-view Tip rated ≥150°C, high-lumen LED
Valve & Pump Internals 4–6 mm 1–2 m 1080p  4-way, ≥160° IP67, stereo measurement

Chemical Compatibility of Probe Sheath

The insertion tube outer jacket will contact residual hydrocarbons, amine solutions, caustic, and acid gas residues. Tungsten-braided sheaths offer the best chemical resistance for sustained petrochemical use. Standard PVC or rubber sheaths may degrade, swell, or crack after repeated exposure — verify the sheath material rating against your process chemical list before purchasing.

Hazardous Area Certification

If the borescope will be used in classified areas (Class I Div 1/2 or ATEX Zone 1/2), the equipment must carry appropriate explosion-proof or intrinsically safe certification. Most commercial inspection cameras are not rated for hazardous locations. Verify the certification label matches your facility's area classification drawing before deploying the equipment on the operating unit.

4. A Compliant 6-Step Inspection Workflow

An inspection that is not documented did not happen. An inspection that is documented but not repeatable has no trending value. The workflow below satisfies both OSHA PSM mechanical integrity requirements and API inspection standards — and it produces data your reliability engineers can actually use.

1

Pre-job safety and isolation verification

Confirm the equipment is properly isolated, depressurized, drained, and purged per your facility's lockout/tagout (LOTO) procedure. Verify gas-free certification for confined space entry (if required). Check area classification — if working in a hazardous area, confirm the borescope carries the appropriate ATEX/IECEx or Class I Division certification. Complete the confined space entry permit and job safety analysis (JSA).

2

Equipment setup and calibration check

Verify probe diameter is compatible with the access port or tube ID. Check articulation full-range function and camera focus. If the system includes a measurement module, perform the pre-inspection calibration verification using the reference gauge block. Set date/time stamp on the recording — this metadata is critical for regulatory traceability. Insert a clean, dry probe — residual moisture on the lens will produce false "pitting" indications.

3

Systematic coverage with continuous video recording

Record continuously from probe insertion to withdrawal. For tube bundle inspections, note the tube row and column position verbally into the audio track at each tube entry. For vessel internals, follow a defined survey path (clockwise from entry point) and document each internal component by name. Never advance the probe by feel — always monitor the live image to prevent probe snagging on internal hardware.

4

Defect identification, measurement, and classification

When a suspected defect is found, freeze the frame. Apply measurement annotations (depth, length, width) using the on-board measurement module. Save both the annotated image and the raw unprocessed still. Classify the finding: corrosion (general/pitting), cracking, erosion, mechanical damage, or deposit. Record the location reference (tube number, weld ID, clock position) and the applicable acceptance criterion from the inspection standard being applied.

5

Comparison with previous inspection data

If this is a repeat inspection (not first-baseline), pull the previous inspection record for the same equipment and CML. Compare current findings against historical images at the same location. Calculate corrosion rate (mm/year) from wall loss measurements taken at identical positions. Flag any finding that represents a significant rate change — this triggers a re-evaluation of the inspection interval and remaining life calculation under API 510/580 RBI methodology.

6

Report generation and MI system upload

Compile the inspection report: equipment ID, tag number, inspection date, inspector name and certification, inspection method and standard, all findings with annotated images, corrosion rates (if repeat inspection), disposition (continue in service / repair / rerate / replace), and recommended next inspection date. Upload the report and all image/video files to your mechanical integrity (MI) database or inspection data management system (IDMS) such as APIDocs, PCMS, or equivalent.

Workflow tip: Build a standardized inspection task card for each equipment type in your facility (e.g., "Shell-and-tube exchanger, crude unit, P-101"). The task card defines the tube survey count, CML list, and acceptance criteria — ensuring that findings are comparable across inspectors and across turnaround cycles. This is the single most effective step for building a trendable corrosion monitoring database.

5. API, ASME & OSHA Documentation Requirements

Petrochemical inspection is a regulated activity. The standards below define not just what to inspect but how to document it — and a borescope image with embedded metadata is the most defensible evidence an inspector can produce. Here is what each framework requires.

API 510 (Pressure Vessels)

  • Inspector certification (API 510 Certified)
  • Internal/external inspection intervals per Section 6
  • Condition monitoring locations (CMLs) documented
  • Corrosion rate calculation and remaining life
  • Photographic evidence of all findings
  • RBI program reference (if applicable per API 580)

API 653 (Storage Tanks)

  • Internal inspection interval per Appendix C
  • Floor scan (MFL) + visual verification
  • Shell and roof inspection (internal + external)
  • Settlement and foundation assessment
  • Coating and lining condition documentation
  • Out-of-service vs. in-service inspection scope

OSHA PSM (1910.119)

  • Mechanical integrity program documentation
  • Inspection and testing frequency per RAGAGEP
  • Equipment-specific inspection procedures
  • Documentation of deficiencies (1910.119(j)(5))
  • Quality assurance for new/replaced equipment
  • Training records for inspection personnel

⚠️ Common compliance gap: Many facilities log "visual inspection complete" without documenting the specific CMLs surveyed, the probe access route, or the comparison basis against prior inspections. An API 510 auditor will ask: "Show me the image from this CML at the last three inspection cycles." If you cannot produce a side-by-side comparison, the inspection is not defensible as a mechanical integrity record.

6. Digital Reporting & Predictive Maintenance Integration

The borescope itself is only half the system. The other half — increasingly the more valuable half — is the digital reporting workflow that connects inspection images to your mechanical integrity database, your RBI (risk-based inspection) program, and ultimately your turnaround planning cycle. Modern pipe inspection cameras are not standalone devices; they are data acquisition front-ends for a reliability engineering pipeline.

✅ What Modern Digital Reporting Enables

  • Auto-tagged images with GPS, timestamp, and equipment ID
  • Side-by-side comparison with prior cycle at same CML
  • Automated corrosion rate calculation from wall loss data
  • One-click export to IDMS (PCMS, APIDocs, Meridium)
  • Cloud-based report sharing with remote engineering review
  • Trendable remaining-life charts across inspection cycles

⚠️ What Still Requires Engineering Judgment

  • Differentiating active corrosion from legacy damage
  • CML selection and coverage strategy optimization
  • RBI re-classification after significant findings
  • Disposition when data is ambiguous or incomplete
  • Root cause analysis for accelerated degradation
  • Turnaround scope decisions based on inspection trends

The practical value of digital integration in 2026 is trending power. Facilities that maintain a consistent borescope image library across turnaround cycles — with standardized CMLs, comparable probe positions, and dated wall-loss measurements — can predict the next intervention date with significantly higher confidence than facilities relying on text-only inspection notes. This translates directly into fewer unplanned shutdowns and more efficient turnaround scope.

Inspecting a specific equipment type?

Tell us your tube ID range, access port diameter, working length requirement, and area classification — our applications engineers will confirm probe compatibility and recommend the optimal configuration for your facility.

Request configuration recommendation →

8. Frequently Asked Questions

What probe diameter do I need for heat exchanger tube inspection?
For standard shell-and-tube exchangers with tube IDs of 12–25 mm, a probe OD of 6–10 mm provides adequate clearance for traversal while allowing the camera to center reasonably within the tube. For smaller-diameter tubes (e.g., compact plate-fin exchangers with 6–8 mm tube IDs), you need a 4–5 mm mini probe. Always verify the minimum bend radius of the probe against any U-bend geometry in the bundle — the probe must articulate through the U-bend without kinking.
Can I use a standard inspection camera in a Class I Division 1 hazardous area?
No. Equipment used in classified hazardous locations must carry certification appropriate to the area classification — ATEX/IECEx for international facilities, or UL/CSA Class I Division 1 or 2 markings for North American facilities. Standard commercial inspection cameras are not rated for hazardous areas and using them in a classified location is an OSHA violation. If your inspection requires entry into an operating unit (not during shutdown), specify an intrinsically safe or explosion-proof certified model. During turnaround when the unit is gas-free and de-energized, standard equipment may be acceptable per your facility's hot work permit — verify with your safety department.
How often should petrochemical piping and vessels be inspected with a borescope?
Inspection intervals are determined by the applicable standard and the equipment's service severity. API 510 defines internal inspection intervals for pressure vessels based on service class, corrosion rate, and remaining life — typically 5–10 years for general service, with shorter intervals for high-corrosion service. API 653 tank internal inspections range from 10–20 years for lined tanks to 5–10 years for unlined. Piping inspection intervals under API 570 are CML-specific and based on measured corrosion rates. If your facility operates under an API 580/581 Risk-Based Inspection program, intervals are adjusted based on probability and consequence of failure analysis.
Can a pipe inspection camera measure wall thickness?
Not directly. Borescopes with stereo or 3D phase-shift measurement modules can measure surface features — crack length, pitting depth, erosion groove dimensions — with typical accuracy of ±0.1 mm under good conditions. However, wall thickness measurement requires ultrasonic testing (UT) from the external surface or pulsed eddy current (PECT) through insulation. The borescope's role in thickness assessment is to locate and characterize the internal surface damage that the UT reading quantifies externally. The two methods are complementary, not interchangeable — a complete inspection program uses both.
What's the difference between a push camera and a video borescope for pipe inspection?
A push camera (push rod camera) uses a semi-rigid fiberglass rod to push a camera head through straight or gently curved pipes over long distances (10–60+ meters). It typically has no articulation — the camera points forward or uses an interchangeable fixed-angle lens tip. A video borescope uses a flexible insertion tube with motorized 4-way articulation at the tip, allowing navigation around bends, baffles, and internal hardware. For long straight pipe and tube runs, a push camera is the right tool. For vessel internals, valve bodies, and complex geometries requiring tip steering, a video borescope is essential. Many facilities maintain both types for different inspection scenarios.
How should borescope inspection images be stored for regulatory compliance?
Store both the original unprocessed image/video (in native format — JPEG/TIFF for stills, MP4 H.264 for video) and the annotated/measured version as separate files. Never overwrite the original. Embed metadata (equipment tag, CML reference, inspection date, inspector name, probe model) in the file or in a linked database record. OSHA PSM regulations require that mechanical integrity inspection records be retained for the life of the equipment. For facilities subject to API 510, inspection records must be maintained until the next inspection cycle minimum, with prior cycle records retained for trending — practically, keep all historical inspection data for the equipment's full service life.

Summary

Effective pipe inspection in petrochemical facilities requires the right probe geometry for each inspection point, a systematic coverage protocol that produces trendable data, and documentation that satisfies OSHA PSM, API 510, and API 653 requirements. A dual-equipment approach — long-range push cameras for tube and pipe runs, articulated video borescopes for vessel and valve internals — covers the full spectrum of facility inspection needs. Digital reporting that connects borescope images to your mechanical integrity database transforms each inspection from a compliance task into a predictive maintenance data point.
